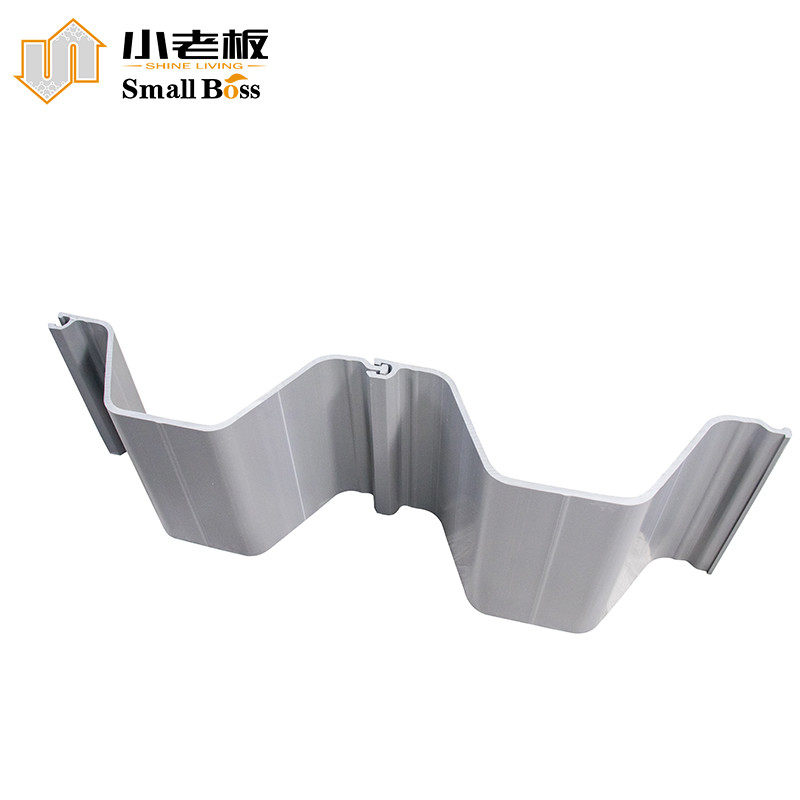

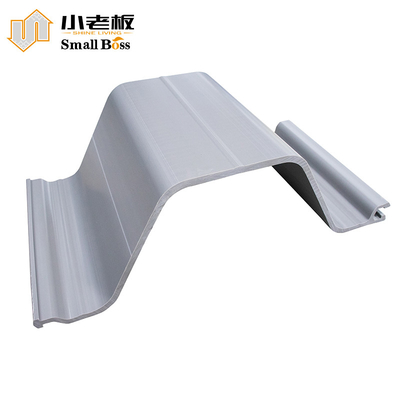

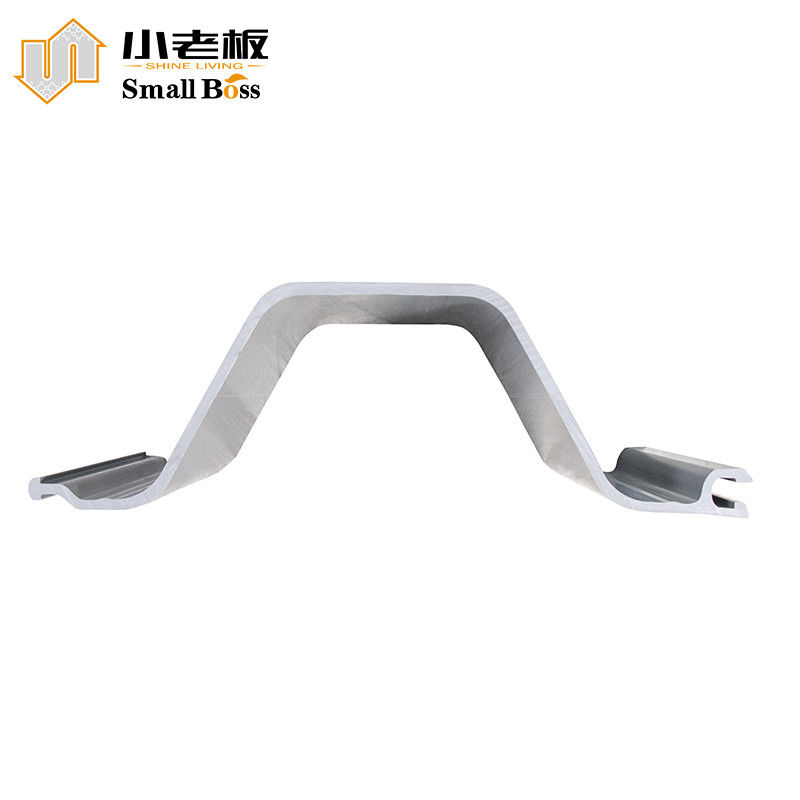

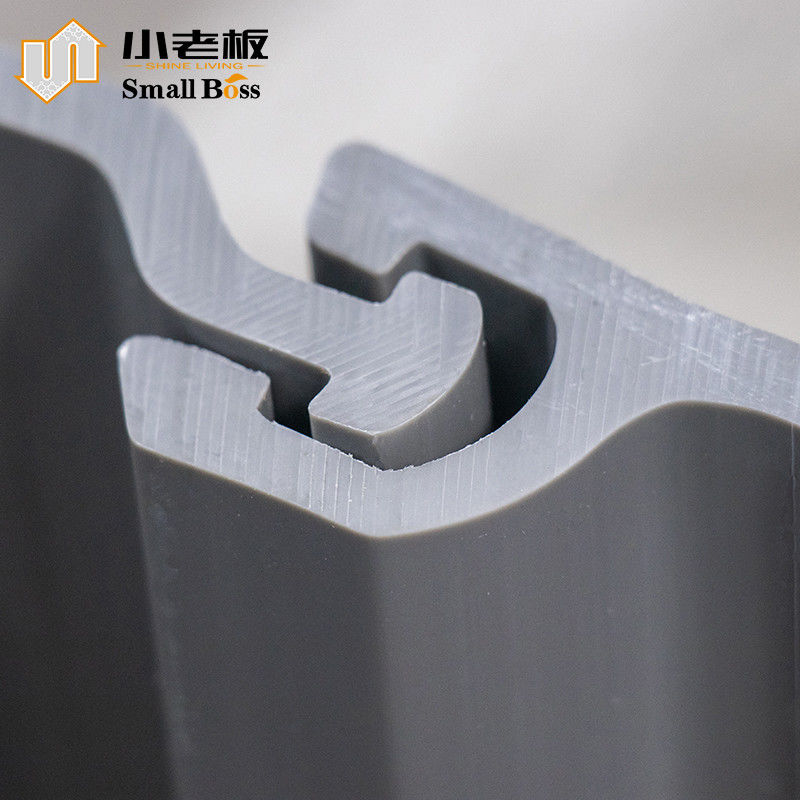

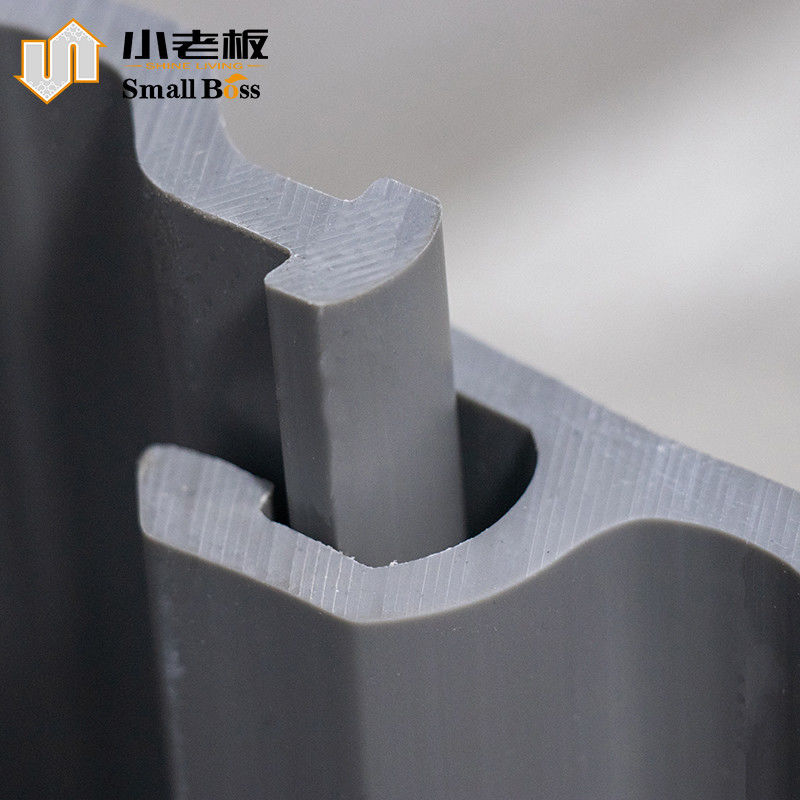

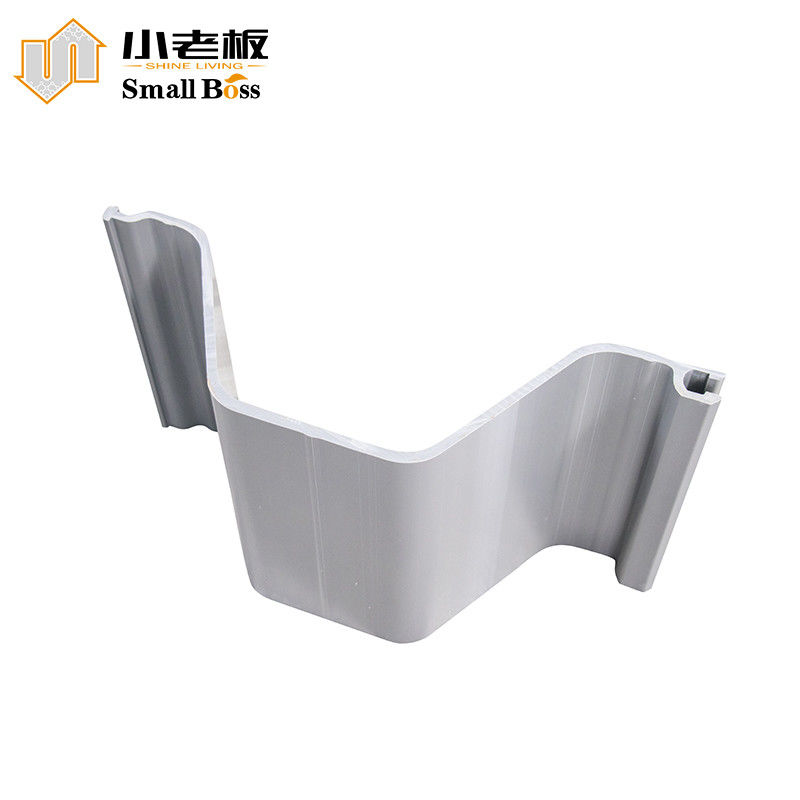

plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile

plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile

plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile
plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile
plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile
تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Small boss
إصدار الشهادات: SGS,ISO9001
رقم الموديل: سو525
شروط الدفع والشحن:
الحد الأدنى لكمية: 5 قطع
الأسعار: discuss personally
تفاصيل التغليف: الحمولة
وقت التسليم: ككمية الشرط الخاص بك
شروط الدفع: T/T، L/C
القدرة على العرض: 200 قطعة في اليوم
اتصل
مفصلة وصف المنتج
الاسم: كومة ورقة PVC المواد: مادة بي.في.سي
العلامة التجارية: بوس صغير الـ MOQ: 5 قطع
اللون: أي التقنية: قذف

Plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile



Plastic sheet piles are used on softer ground using EMV. They are used on a smaller scale than regular steel piling and are generally used for lower retained heights. Often plastic piling sheets are pre-treated with sealants to create impermeable barriers.
They are often made form recycled materials and are resistant to chemical attack. They are particularly suitable for marine or canal basin walls and flood barrier walls.



INSTALLATION CRITERIA
√ Sheet pile length.
√ Soil conditions.
√ Obstructions.
√ Onshore or offshore.
√ Water depth.


Specification:

Item NO Section Width Section depth Thickness Length Color
SZ402 402MM 180MM 9MM Customization Customization
SZ457 457MM 254MM 11MM Customization Customization
SU457 457MM 152MM 6MM Customization Customization
SU718 718MM 180MM 10MM Customization Customization
SU525 525MM 160MM 10MM Customization Customization
SU622 622MM 230MM 9MM Customization Customization
SF626 626MM 92MM 6MM Customization Customization



VINYL SHEET PILE INSTALLATION
There are a large number of techniques to drive vinyl sheet piles. The system used largely depends on the circumstances. In some situations, particularly when short lengths of Plastic Piling are being installed, it can be inserted into the ground manually by using a maul and pile cap. This is often the case in peat land areas, where the ground conditions are more favorable. When installing longer lengths, or where the ground conditions are more difficult, a piling hammer should be used. Driving the sheet pile directly can be done with a standard pneumatic hammer or a light vibrator with or without a clamp. This system is only suitable for driving at light conditions and to a limited depth. For heavy conditions and installation from 4m up to 8m depth, it is advisable to use a steel support sheet pile with exactly the same shape as the PVC profile. With support harder soil can be penetrated and installation is speeded up because the hammer does not have to be disconnected from the steel guiding sheet pile.

Advantage of Smallboss PVC Sheet Pile
√ Does not rot or rust
√ Manufactured from recycled plastic
√ Resistant to the majority of chemicals
√ Not affected by salt water
√ Light weight, easy handling
√ Reduced impact on natural resources

plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile 0


Application
CUT-OFF & CONTAINMENT SYSTEMS

Used to protect places with variable or raised groundwater level, PVC sheet piling efficiently reduces water infiltration as well as secures the terrain against gradual erosion and degradation.Groundwater cut-off Chemical containment, Fluid Seepage Barriers, Protection of Foundation Structures.

The EcoLock retaining systems may be used to separate water reservoirs or groundwater from environmentally challenged places(for instance, in the vicinity of landfills andfactories). Applications include but are not limited to: Groundwater cut-off,Chemical containment,Fluid Seepage Barriers,Protection of Foundation Structures. beachfront protection, coastline protection, road protection, bulkheads construction.

Composite Sheet Pile Vinyl Extrusion U Type Sheet Pile Grey 10MM Thickness 2
Flood protection structures
PVC solutions are used more and more frequently in the construction of flood walls. They significantly strengthen and increase the durability and tightness of the structure, preventing water leaks during floods.
Composite Sheet Pile Vinyl Extrusion U Type Sheet Pile Grey 10MM Thickness 3
WATER CONTROL SOLUTIONS

Vinyl Sheet Piles can be utilised for fluid containment or cutoff barriers due to their good chemical resistance and seepage resistance especially if combined with a sealant. Vinyl PVC Sheet Piles can be utilized for water control structures that function by altering the flow of water in a pond, drainage channel or stream. ESC sheet piles have been utilized for water control applications for decades.

Baffle Walls for water or waste water flow control
• River Weirs
• Pond Linings
• Channel Linings for agricultural applications
• River Diversion
• Mining drainage systems

Composite Sheet Pile Vinyl Extrusion U Type Sheet Pile Grey 10MM Thickness 4
MARINE STRUCTURES

Smallboss has been delivering sheet piling solutions to marine structures. Vinyl PVC Sheet Piles provide an excellent option for a long-lasting structural solution due to their superior corrosion resistance, aesthetic finish, and lightweight profile for easy handling and installation.

The marine applications include:

• Marine Bulkheads & Seawalls
• Tide Walls
• Breakwaters
• Wave Breaks
• Jetty Structures
• Groins
• Scour Protection and Erosion Control
• Retaining Walls

Composite Sheet Pile Vinyl Extrusion U Type Sheet Pile Grey 10MM Thickness 5
Embankment Works / Road Construction

The use of sheet piles reduces the volume of backfill materials by enclosing certain limits exactly as necessary. Employing the material also eliminates the requirement for slope protection works and helps maximize the area when it is limited.

Vinyl sheet pile which can be manufactured to any length specified in the project would make them ideal for the construction of the following: over water or elevated roads,over water or elevated walkways, coastal roads
,jetties or berths, other reclamations.

Composite Sheet Pile Vinyl Extrusion U Type Sheet Pile Grey 10MM Thickness 6
Factory visit
plastic Sheet Piling Vinyl Sheet Pile Material Vinyl Capping Seawall PVC Vinyl Sheet Pile 6
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it
is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge ,there are delivery cost to be paid by buyer.
Q: What is your terms of payment ?
A: T/T ,L/C or Alibaba Assurance.
